Characterization of the FISHER FIELDVUE™ digital valve controller provides an installed equal percent flow characteristic for precision control.

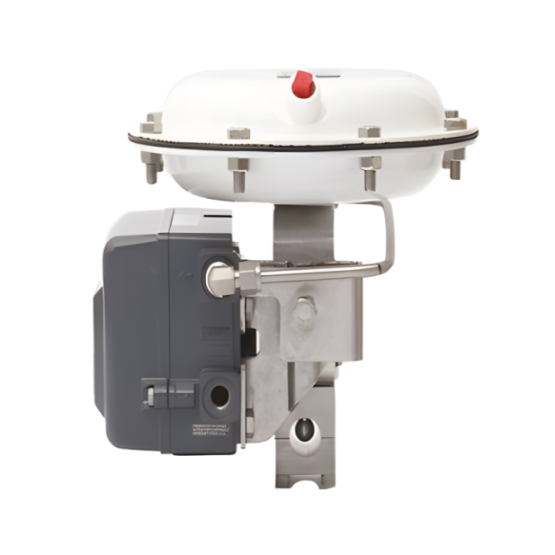

The 85000 valve has no physical contact with the process fluid, due to the use of disposable tubing.
The tube shell design of the 85000 valve allows for easy change out of disposable tubing while providing stability during service.
Features a fail-close configuration.
Compact and light weight design reduces installed piping costs.
Epoxy powder-coated actuator with stainless steel fasteners for maximum corrosion resistance.
Specifications
Valve Size: NPS 3/4
Pressure Rating: 100 psi
Process Connection Type: Flangeless/Inline
Material: Stainless Steel
Other Configurations: Contact us for additional specifications or options.
Applications
Designed for use in both biotechnology and pharmaceutical industries, where cleanliness and sterility are required, the primary use is for disposable skid-based processes
Suitable for low flow, sanitary and other conditions
