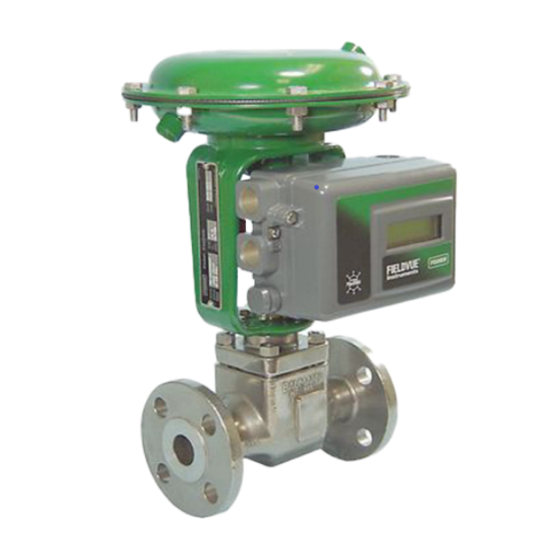

Baumann™ 24000CVF Carbon Steel and 24000SVF Stainless Steel Flanged Control Valves
Main Features
Compact and light weight design reduces installed piping costs.
ASME and EN end connections are available to meet your piping standards.
Full lift post-guided contoured plug allows flushing of debris through valve body.
S31600 austenitic stainless steel trim material is standard; S41600 stainless steel trim is available.
Multiple trim options are available to meet changing process requirements.
FISHER FIELDVUE™ digital valve controller available for remote calibration and diagnostics in facilities utilizing the PlantWeb architecture.
ENVIRO-SEAL™ packing available for increased packing life and integrity.
NOLEEK bellows bonnet suitable for a wide range of operating temperatures. Extension bonnets in multiple lengths available for elevated temperature and cryogenic application service.
Specifications
Valve Size: NPS 1/2 to NPS 2
Pressure Rating: ANSI CL150-300,PN10-40
Process Connection Type: Flanged
Material: Carbon Steel, Stainless Steel
Other Configurations: Contact us for additional specifications or options.
Applications
Mainly used in textile, pharmaceutical, tobacco, and food and beverage industries
Suitable for most fluid media, including water, steam, air, process gases, and more
Suitable for pressure, temperature, level and flow control
