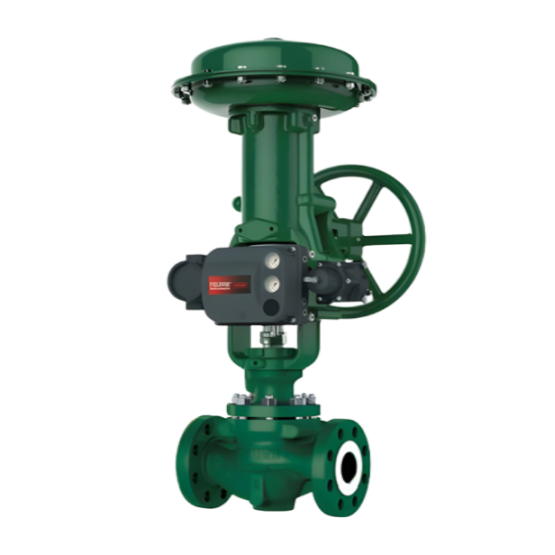

Optional globe and angle valve bodies with balanced plug design, cage guided, and metal-to-metal seat sealing, suitable for a wide range of process pressure drops and temperatures.
Simple structure,easy maintenance. Top-entry designs allows for in-line maintenance, enabling quick removal of the trims such as cage, plug and seat ring from the top without removing the valve body from the pipeline. The packing box design allows for actuator replacement without depressurization.
Hardened stainless steel trim improves wear resistance and extends service life. Precision-machined trim ensures smooth operation. Cage guidance ensures smooth travel of the plug throughout its entire stroke, reducing vibration and mechanical noise.
High flow capacity. Streamlined flow passages provide approximately 30-40% higher flow capacity compared to single-seat globe valves of the same size. For the same flow capacity, a smaller valve can be used, saving valve investment.
Multiple trim options available, such as noise reduction and anti-cavitation trims.Interchangeable trim with other easy-e series models allows for easy modification of flow characteristics and capacity, reducing spare parts inventory and investment.
ENVIRO-SEAL™ packing system improves stem sealing performance and help prevent process fluid leakage. These packing systems utilize dynamically loaded PTFE or graphite ULF packing, reducing packing maintenance.
Multiple graphite piston rings for Class IV shutoff up to 1100°F (593°C); C-seal trim Provides Class V shutoff up to 1100°F (593°C).
Specifications
Valve Size: NPS 1 to NPS 30
Pressure Rating: ANSI CL125-600 PN10-100
Process Connection Types: Flanged, Butt Welded, RTJ, Threaded, Socket Welded
Material: Carbon Steel, Stainless Steel, Alloy Steel and other special materials
Other Configurations: Contact us for additional specifications or options
Applications
Low and medium pressure sliding stem valves commonly used in energy, power, oil and gas, petrochemical, chemical and life science industries
Suitable for most fluid media, including water, steam, air, process gases, and others
Applicable for noise abatement, cavitation, steam condition, erosive, low flow, corrosive, general service, outgassing, flashing, etc..
