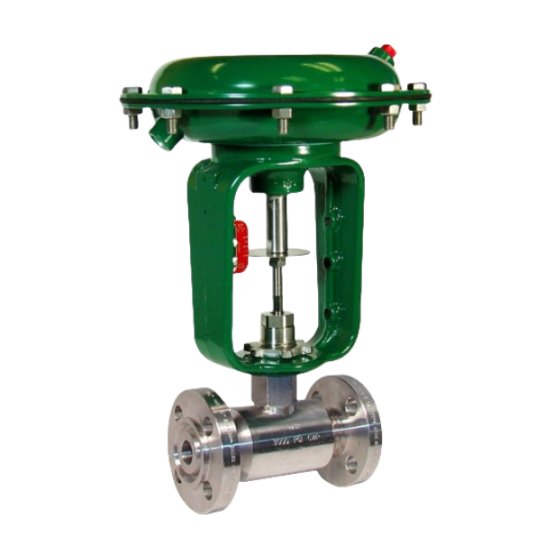

Baumann™ 24000SB Bar Stock Control Valve
Main Features
Compact and light weight design reduces installed piping costs.
Superior dual plug and stem guiding provides increased stability during plug travel.
Multiple trim capacity reductions available to meet changing process requirements with Cv ratings as low as 0.00013.
Optional extended bonnet for applications ranging from -195°C to 537°C (-320°F to 1000°F).
Epoxy powder coated actuator with stainless steel fasteners for corrosion resistance.
Multi-spring, field reversible actuator with reduced deadband, permits direct operation from remote signal devices.
Optional ENVIRO-SEAL™ packing system to meet critical emission control requirements.
FISHER FIELDVUE™ digital valve controller is available for remote calibration and diagnostics in facilities utilizing the PlantWeb architecture.
Specifications
Valve Size: NPS 1/2 to NPS 1
Pressure Rating: ANSI CL150-1500
Process Connection Type: Flanged, Butt Welded, Threaded
Material: Stainless Steel, Alloy
Other Configurations: Contact us for additional specifications or options.
Applications
Mainly used in textile, pharmaceutical, tobacco, and food and beverage industries
Suitable for most fluid media, including water, steam, air, process gases, and more
Recommended for low flow, high pressure and industrial control applications
