• Connection Size: NPS 1/2, 3/4, 1, 1-1/2 x 1, 1-1/2, 2, and 3
• Pressure Range: 0.14 to 9.3 bar / 2 to 135 psig
• Maximum Inlet Pressure: 14.5 bar / 210 psig
• Maximum withstand temperature 204°C / 400°F
• Maximum Flow Capacity: 3096 kg/h / 6820 lbs/h
• Operation Type: direct-operated
• Body Material: 316L stainless steel and 0.5 μm/20 μin Ra

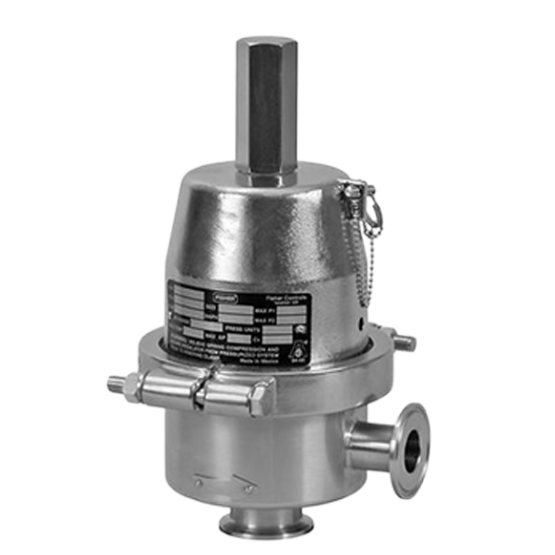

The Type SR5 regulator is a compact, large capacity, direct-operated pressure reducing regulator. It is designed for use in applications where a sanitary design is essential, such as pharmaceutical, biotech, or food and beverage industries.
