• Connection Size:s NPS 1, 2, 3, and 4
• Pressure Range: 0.34 to 20.7 bar / 5 to 300 psig
• Maximum Inlet Pressure: 27.6 bar / 400 psig
• Maximum Flow Capacity: 6240 l/min / 1650 gpm
• Operation Type: direct-operated
• Body Material: Steel, Cast Iron, and Stainless Steel
• Maximum temperature 121°C / 250°F

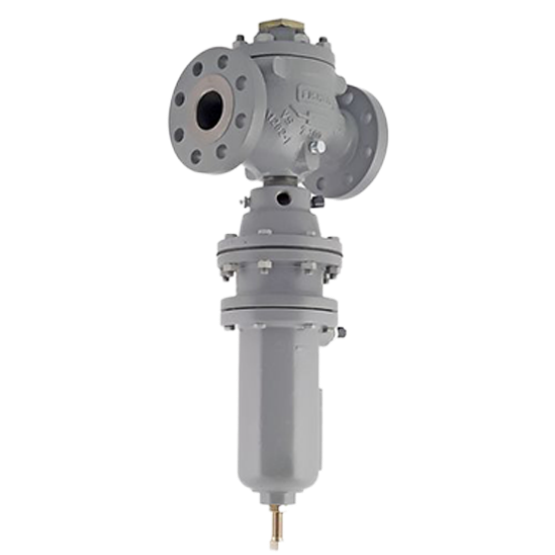

The MR105 model is a direct-acting, high-capacity, multi-purpose pressure-reducing valve suitable for a wide range of applications and fluids, including liquids, air, and gaseous media. It offers both linear and quick-opening trim cages to meet the requirements of lubrication system manufacturers meet the API 614 standard. A variety of port connection styles are available to meet.
