• Connection Size: NPS 1/4, 1/2, 3/4, 1, 1-1/2, and 2
• Pressure Range: 0.14 to 27.6 bar / 2 to 400 psig
• Maximum Inlet Pressure: 68.9 bar / 1000 psig
• Maximum temperature 343°C / 650°F
• Maximum Flow Capacity: 7600 kg/h / 17,000 lbs/h
• Operation Type: direct-operated
• Body Materials: Cast iron, steel, stainless steel, Hastelloy® C, and Monel®.

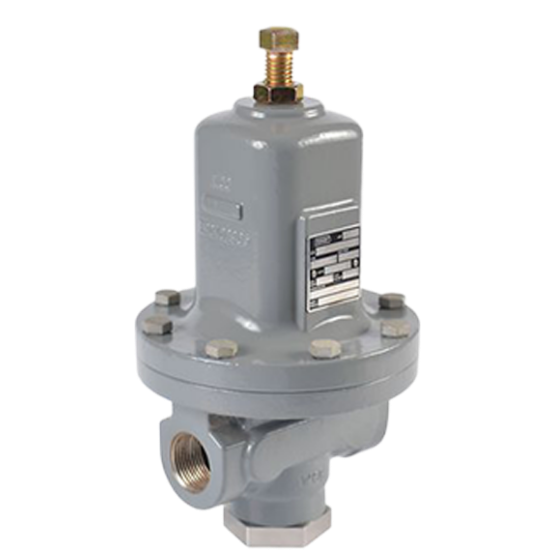

The MR95 Series regulators can help solve the toughest pressure control applications. Typical applications include superheated steam, steam injection, steam tracing, nitrogen purging, boiler feed water, process chemicals, cooling water, test fixtures, wash tanks, sterilizers/autoclaves, fuel lines, pneumatic supply and many others.
