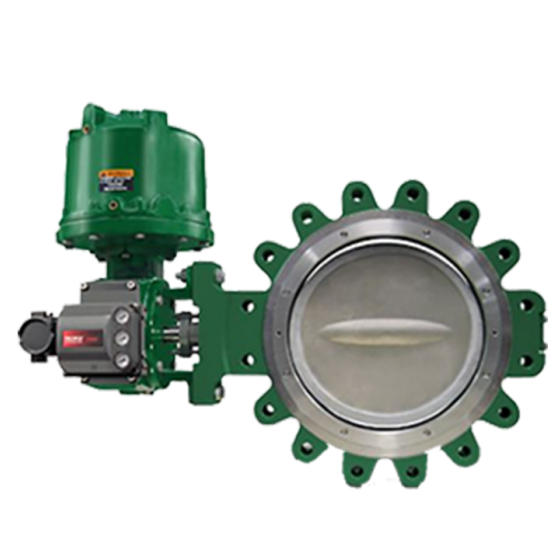

Baumann actuators are spring-return, single-acting pneumatic actuators. They are compact, multi-spring type actuators. Models 16, 32, and 54 allow for changing fail positions without the need for special tools or additional components.
Main Features
Multi-spring construction with field replaceable out-of-air positions reduces dead zones and allows direct operation from remote signaling devices.
Epoxy powder coated actuators with stainless steel fasteners for corrosion resistance.
The actuator and bracket can be removed from the valve assembly while maintaining the integrity of the packing.
Stainless steel construction for use in corrosive and sanitary environments.
Optional handwheel and adjustable travel stops.
Specifications
Size:SIZE 16/32/54/70
Accepts a maximum air supply pressure of 35 psig (2.41bar)
Other configurations: Contact us for more information on specifications or options for this product
