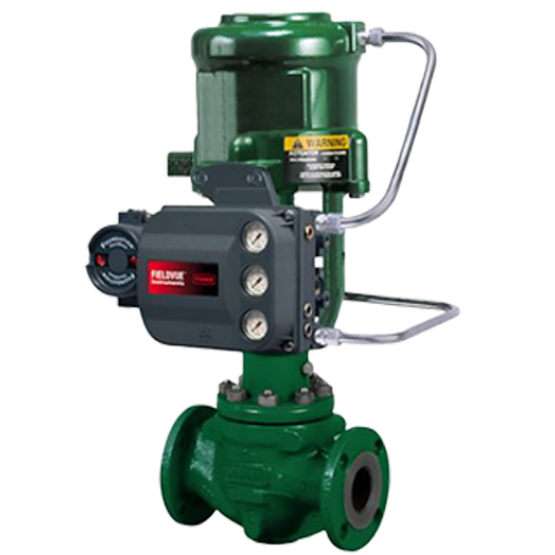

FISHER™ 585C Piston Actuator

The 585C linear piston actuator is a powerful, double-acting actuator that provides accurate
throttling or on-off operation for sliding-stem control valves.It can be used with switching valves for on-off control, or with the DVC6200 digital valve controller or 3600 positioner for throttling applications.

Main Features

High thrust capability and fast drive speeds.
Broad Travel Capability. 585C piston actuators provide standard travel lengths of up to 203 mm (8 inches).
Double acting, providing maximum force in both directions.
A variety of accessories can be installed to realize the position-keeping and locking functions.

Specifications

Size:SIZE 25-130.
Maximum output thrust 24300Lbf(108KN).
With air supply capability of up to 150 psig.
Other configurations: Consult your Emerson sales office or Local Business Partner
