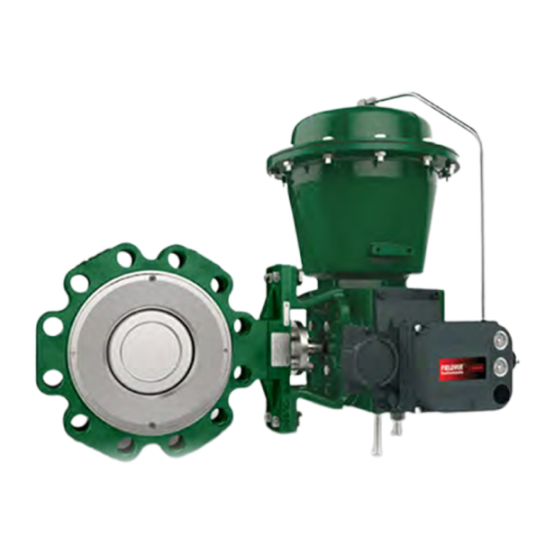

This valve will meet your actuator needs with a choice of splined, square, or keyed shaft connections.
The pressure-assisted seal design provides tight shutoff and permits the use of smaller, less expensive actuators in applications requiring full ASME B16.34 shutoff capabilities.
The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live-loading to provide improved sealing, guiding, and loading force transmission.
Trim and bolting materials are available for applications involving sour liquids and gases.
The valve body self-centers on the line flange bolts as a fast, accurate means of centering the valve in the pipeline.
Seal retainer screws are located so there is no interference with the sealing function.
The torque necessary to open and close the valves is the same, regardless of the direction in which the differential pressure is applied.
Specifications
Valve Size: NPS 3 to NPS 24
Pressure Rating: ANSI CL600
Process connection type: Flanged, Single Flanged, Double Flanged, Lugged
Material: Carbon Steel, Stainless, Alloy
Other configurations: Contact us for more additional specifications or options for this product
Applications
Medium and low pressure angle stroke valves commonly used in the energy, power, oil and gas, petrochemical, chemical, life sciences and other industries
Can be used with most fluid media, including water, steam, air, process gases, and more
Can be applied to noise suppression, cavitation, vapor conditions, erosive, low flow, corrosive, general service conditions, outgassing, flashing, etc.,
