Shaft and trunnion guiding provides improved dynamic control.
Standard construction materials comply with NACE Standard MR0175 / IS 15156.
Self-adjusting seals are pressure assisted to provide Class VI shutoff for long, reliable service. Design incorporates a heavy duty S31600 stainless steel carrier that retains the composition seal.
Comes standard with a base bracket allowing the valve to sit upright.
The ball trunnions are designed for demanding applications requiring long service life, with a reduction in maintenance time and costs.
Design comes standard with a dual seal arrangement.
Optional fire tested construction.
Specifications
Valve Size: NPS 6 to NPS 24
Pressure Rating: ANSI CL150-600
Process connection type: flanged
Material: carbon steel
Other configurations: Contact us for more additional specifications or options for this product
Applications

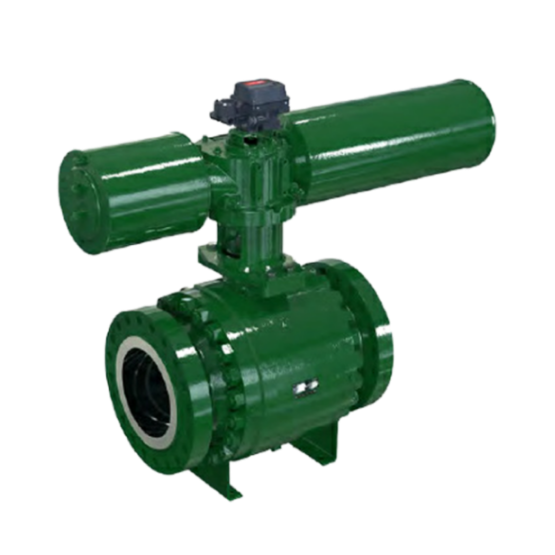

The V270 full bore ball valve allows for automated control in bypass, batch applications, monitors, and emergency shutoff valve applications with virtually no restriction on flow.
