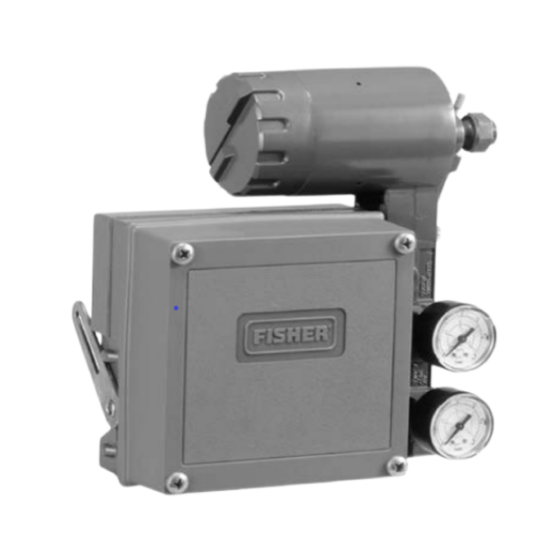

FISHER™ 3582 and 3582i Positioners

FISHER 3582 pneumatic valve positioners and 3582i electro-pneumatic valve positioners , are used with diaphragm-actuated, sliding-stem control valve assemblies. The pneumatic valve positioners receive a pneumatic input signal from a control device and modulate the supply pressure to the control valve actuator, providing an accurate valve stem position that is proportional to the pneumatic input signal.

Main Features

Adjustable zero and span ranges allow the use of all standard input signals (including split ranges).
One unit of the positioner series can be used for a wide variety of control applications, which not only simplifies basic spare parts requirements, but also reduces the number of spare parts needed for plant-wide positioner applications.
Removing the cover makes zero and range adjustments easy with a screwdriver and wrench.
Variations in gas supply pressure and valve loading minimize the effect on positioner operation.
The housing, components and gaskets are made of materials that can withstand the rigors of the working environment. The positioner exhaust air cleans the internal components, thus providing additional protection.
Simple adjustment, switchable between positive and negative action.

Specifications

	3582	3582i
Regional Categorization	ATEX for gases and dusts of Group II, Division 2, and CUTR for Group II, Division 2 equipment	explosion-proof, intrinsically safe, non-flammable, dust-proof
Certification	ATEX, CUTR, PED	CSA, FM, ATEX, IECEX, CUTR, Peso, KGS, INMETRO, NEPSI, RCM
Communication Protocols	3-15 or 6-30 psi, 0.2-1.0 or 0.4-2.0 bar, pneumatic signal	4-20mA
Data Interfaces	/	Wired
Diagnosis	without	without
Input Signal	Pneumatic	Electrical
Maximum outlet pressure	50 psi	50 psi
Installation Type	Actuator-mounted	Actuator-mounted
Operating Temperature	Standard temperature, high temperature	Standard temperature, high temperature
Position Control	Modulation	Modulation
Security Certification	NIL	NIL
Supply Medium	Air, gas	Air
Other Configurations	Contact your local Emerson business partner or sales office for more information on technical specifications or options for this product.

Applications

As an important supporting control component of pneumatic valve, valve positioner is widely used in petrochemical, chemical, power, metal, light industry and other fields.
Suitable for diaphragm actuated direct travel control valves for indirect control of flow, pressure, temperature and liquid level in processes.
Designed for nuclear energy applications, the Model 3582NS positioner utilizes materials with exceptional performance under high temperature and high radiation conditions.
