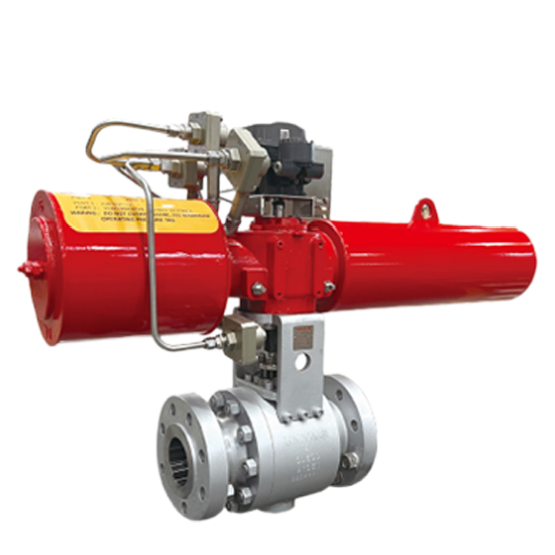

Main Features
- Bidirectional metal hard seal construction (standard DBB construction, optional DIB-1/2)
- NPS2~4, pivot type, NPS more than 6 for the built-in support plate ball fixed form
- Low leakage multiple seal packing system design
- Anti-static design, fire protection design API607
- Valve stem anti-blowout structure
- Stem packing seal: ISO15848
- TUV SIL3 certification
Specifications
- Valve Size: NPS 2 to NPS 24
- Pressure Rating:Class 150~Class 2500
- Material: carbon steel, alloy steel, stainless steel
- Other Configurations:Contact us for more information on technical specifications or options for this product
Applications
- Providing longer service life and better sealing performance, the
- Meeting the safety, low fugitive and higher performance requirements of the oil and gas, petrochemical and chemical industries
- Wide range of applications, such as emergency shutdown valves (ESDV), high and low temperature service, etc.
- Suitable for liquids, gases, vapors, and media containing small amounts of particles and powders
