• Filter size:3/4"
• End connections: 3/4 NPT screwed
• Maximum inlet and outlet pressures: cast iron 28 bar at 65°C (400 psig at 150°F)

Stainless Steel 41 bar at 65°C (600 psig at 150°F)

• Temperature: cast iron -28 to 208°C(-20 to 406°F)

Stainless Steel -54 to 208°C(-65 to 406°F)

• Material:cast iron/stainless steel (CF8M)

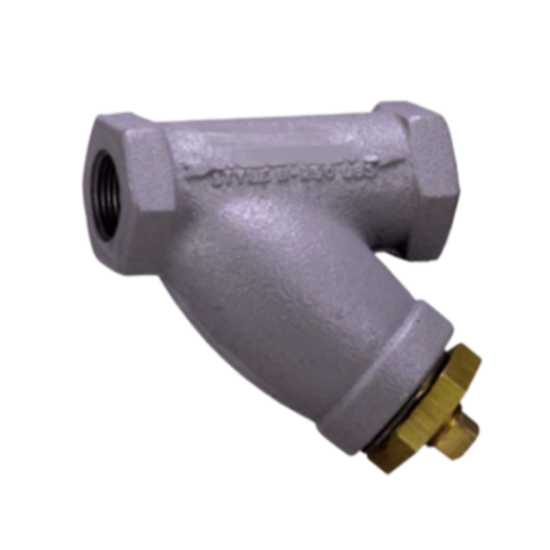

Designed to remove dirt, scale, and other solid substances from the air supply to actuators and instruments.
