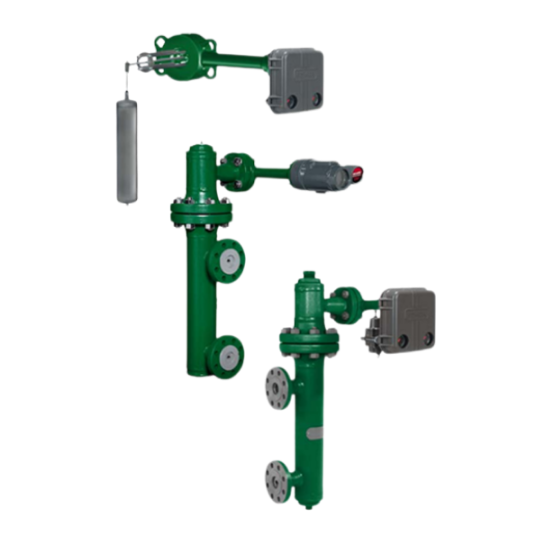

FISHER™ 249 Sensor

Main Features

Stability: For vessels with internal obstructions or considerable internal turbulence, the operation of the outer sensor is more stable than that of the inner sensor.
Sensitivity: Displacer responds to small changes in specific gravity, making it suitable for density applications as well as other applications that require response to low-level input signal changes.
Durability: Few moving parts are used, and the knife-edge drive bearing in the sensor helps minimize friction and increase durability.
Mounting versatility: A variety of positioning and connection options are available, and all sensors can be mounted on either the left or right side.
Easy maintenance: The torque tube can be replaced without removing the torque tube arm, reducing maintenance costs.

Specifications

Process connection: NPS 1 1/2 to NPS 8.
Pressure Rating:ANSI CL125-2500.
Process connection types: RF, butt-welded, RTJ, threaded, socket-welded.
Material: carbon steel, stainless steel, alloy steel and other special materials.
Other configurations: Contact us for more information.

Applications

FISHER™ 249 Sensor is suitable for industrial applications requiring highly accurate level measurement, such as the chemical, oil and gas, food and beverage processing industries.
