• The control system of SC heat exchanger unit contains precisely matched control equipment. It can provide precise control under all operating conditions.
• Our pneumatic and electric control valves have valve characteristics specifically designed for steam systems, while our new generation of intelligent positioners also provide precise valve position control.
• The multi-function programmable controller is PID control, which is simple and reliable. More customized PLC control for users to achieve more comprehensive control, monitoring, communication and other expansion needs.
• SC units provide a complete, independent high temperature shutoff valve and control system to ensure personnel and process safety in the event of system failure resulting in high water temperatures.

• SC heat exchanger unit is equipped with a special steam heat exchanger for precise heat exchange conditions, and the length-to-width ratio of the plate and the port design are optimized, which is more suitable for steam applications. The maintenance of plate replacement is minimal, and even under the working conditions of an open system, it is not easy to scale.
• SC can provide plate exchangers for super cooling condensed water, which is a very good choice for using condensed water sensible heat to reduce steam consumption.
• For other exhaust and flash steam applications, there are specialized shell-and-tube or shell-and-plate heat exchangers to choose from.

According to the working condition and the actual situation to choose the efficient dischage mode. Using the automatic trap pump as the condensate removal method can ensure that the unit can work effectively under high condensate back pressure, even under low load conditions. If there is a risk of secondary side scaling or product damage, the use of an automatic trap pump allows the unit to remove condensate at very low steam temperatures, even if the system has high back pressure. The unit can also be equipped with a float trap with thermostatic air exhaust device to effectively remove condensate. Under certain conditions, the condensate level control scheme which maintains the condensate discharge pressure can be adopted.

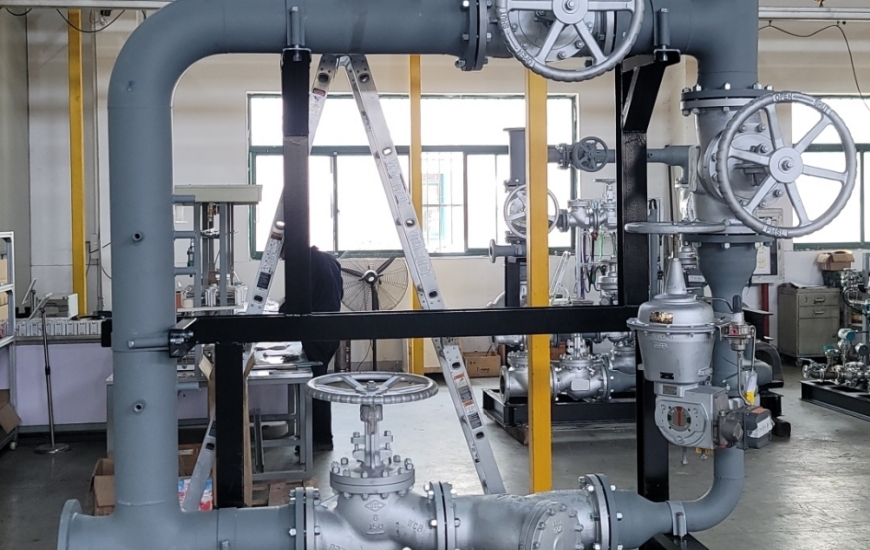

The compact design and light weight of the unit make it easy to install even when space is very tight. Saving investment costs and installation costs.

According to the different needs of customers, we can provide a variety of different options, including: pressure reduction, separator, condensate drainage, circulation pump, water make-up unit, to meet the different customized needs of different applications.
