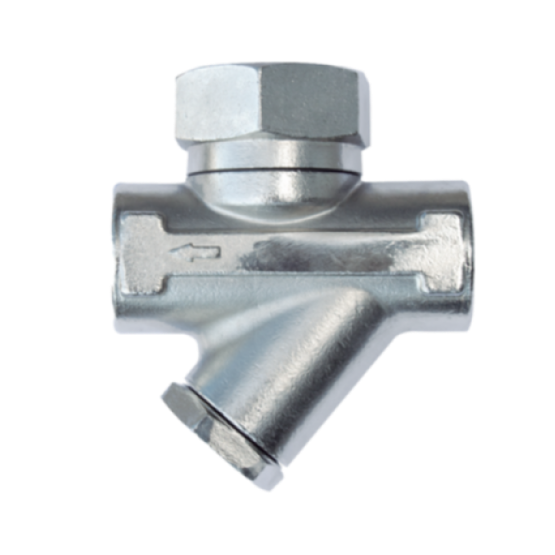

Easy in-line inspection and maintenance: Simple one-piece thermodynamic cartridge which can be inspected and replaced without having to remove the steam trap from the line.
Single moving part: Simple and effective design uses just one moving part to enhaze minimal maintenance and long operating life.
All parts made in Stainless Steel: Body material and trim are made in stainless Steel. To avoid oxidation body Surface is nickel plated.
High capacities: Optimized porting configuration provides higher flow capacities than other cartridge designs.
Rugged design: Withstands the effects of water hammer, vibration and corrosive environments.
Specifications
Valve Size: NPS 1/2 to NPS 1
Interface: threaded or flanged
Maximum working temperature:400℃
Maximum working pressure:42barg
Maximum back pressure: not more than 80% upstream
Installation direction: horizontal
Other Configurations:Contact us for more information on technical specifications or options for this product
Applications
Steam mains drips, tracers.
Constant-pressure,constant-load applications.
Installations subject to ambient conditionsbelow freezing.
