Home / Products / Isolation Valves / FASANI Check Valves / Style B Y/T Stop-Check Valve

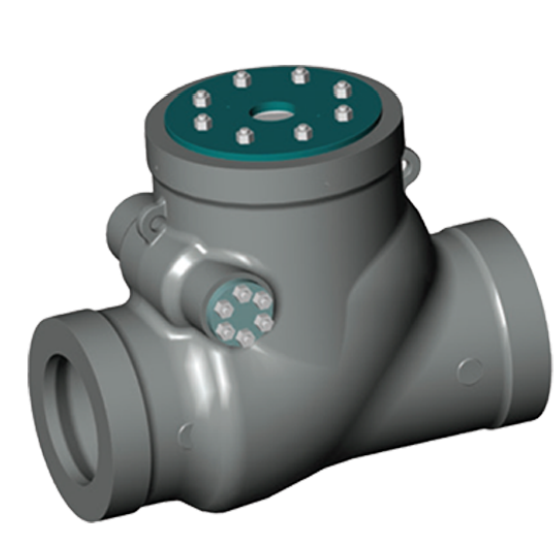

Style B Y/T Stop-Check Valve

A wide range of check valves specifically designed for high pressure and high temperature applications.

Main Features

Available in swing check, tilting disc and piston check (Y andT pattern design).
Swing check valves can fit on both horizontal and vertical (up-flow) piping.
Tilting disc check valves are designed to prevent the disc slamming and to ensure, at the same time, a quick closing service.
Lift check valves (Y and T patterns) are designed to be installed on horizontal piping.
Seat is welded in
Available options: side mounted counterweight, side mounted hydraulic damper and disc anti-rotation device

Style B Y/T Stop-Check Valve

Specifications

Valve size: DN 50 to 600 (NPS 2-24) or larger.
Temperature range:-46 C to+650 C.
Pressure grade: swing ASME Class 900, 1500, 2500.
Swashplate ASME Class 600, 900, 1500, 2500
Lifting T-type ASME Class 600, 900, 1500, 2500
Lift type Y type ASME Class 900, 1500, 2500
Valve body material: All casting materials specified in ASTM standard can be provided.

Solutions

Our pressure seal check valves are recommended for a wide range of applications, particularly those requiring very high pressures and temperatures: steam, oil and gas processing, chemical and petrochemical industry and in the power industry.
These high quality valves are successfully installed worldwide on applications requiring flow reversal prevention
