Home / Products / Isolation Valves / SEMPELL Globe Valves / VA400 High Pressure Isolation Valves

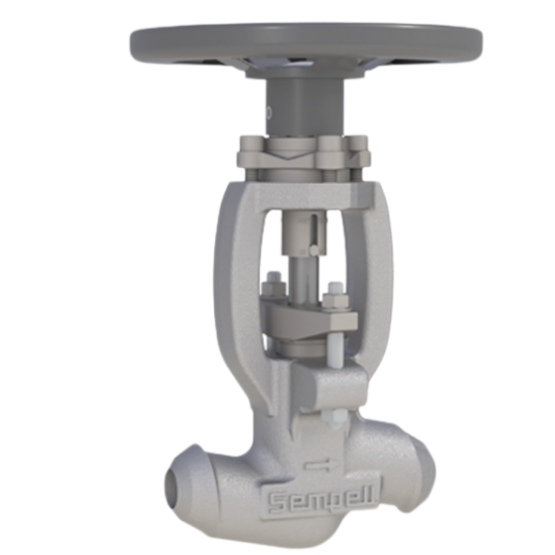

VA400 High Pressure Isolation Valves

Main Features

T-pattern globe type
One-piece die-forged body design
Replaceable seat ring
Seat surface of wear-resistant stellite
Robust and optimized design with limited number of components
Visual position indicator
Non-rotating stem
Handwheel or automated option
Double bearings for low actuation forces
Code compliance with ASME B16.34 and EN12516-2 (PED)

VA400 High Pressure Isolation Valves

Specifications

Valve Size: NPS 1/2, 1, 2；Pipe Size: NPS 3/8 to 2-1/2
Pressure Class: Class 900 to 2680 STD/LTD
Material: SA 105, SA182 F12, SA182 F22, SA182 F91
Temperature range: -29°C to 625°C
Connection: Butt welding connection, according to ASME B16.25 standard socket welding connection, according to ASME B16.11 standard
Other Configurations:Contact us for more information on technical specifications or options for this product

Applications

Designed for high temperature and pressure applications in steam and water cycles for all power applications.
Applications include venting, dewatering, bypass systems, line preheating, etc.,
