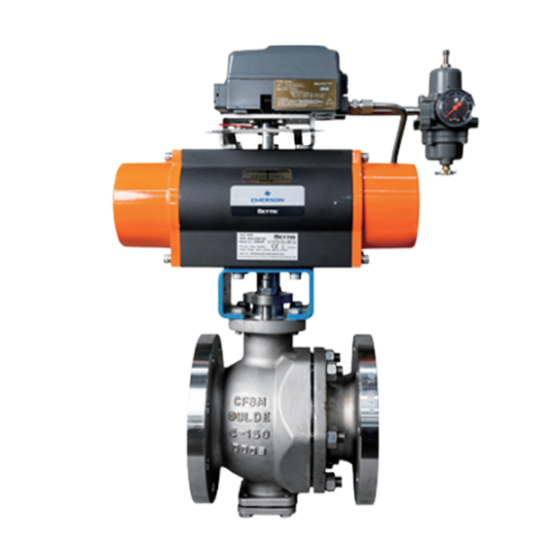

GULDE 7200 V-control Ball Valve

The GULDE 7200 V-Port Control Ball Valve is a regulating ball valve designed for critical applications involving steam, liquids, gases, or the pulp and paper industry. It is particularly well-suited for the regulation of fluids containing fibers, particulate slurries, highly viscous solutions, and other substances with unique characteristics.

Main Features

The rotary valve's V-shaped cutout creates a shearing action between the ball and seat for smooth, non-clogging operation.
The straight-through flow path design improves the fluid flow capacity of the valve.
The single-seat design, with a lower actuation torque than typical fixed-ball valves, offers the advantages of easy operation and low cost of the required actuator.
Three seat designs.

Double-seated to provide ANSI/FCI 70-2 Class IV shutoff to withstand severe service conditions.
Integrated seat, provides ANSI/FCI70-2 Class II shutoff for high velocity and abrasive or erosive service.
Soft-sealed seat, providing ANSI/FCI 70-2 Class VI shutoff, for use in applications requiring high shutoff ratings

The V-port ball has a high adjustable ratio and smooth throttling action.
Actuator mounting flange according to ISO 5211.
High-strength stainless steel stem for heavy-duty and high-stiffness applications.
A variety of packing options are available and can be easily adjusted without disassembling the valve or actuator.
The sleeve on the stem ensures that the valve is durable, smooth and easy to operate.
Split body ensures the coaxiality of the ball and seat, which is more conducive to the control of internal leakage.
Splined connections minimize shaft and ball core air travel, resulting in excellent control performance

Specifications

Valve Size: NPS 1 to NPS 6
Pressure Rating:ANSI CL150-300
Process connection type: flanged
Material: WCC, CF8M
Other configurations: Contact us for more information on specifications or options for this product

Applications

For steam, liquids, gases or critical conditions in the pulp and paper industry
Particularly suitable for fiber-containing, granular slurries, highly viscous solutions and other fluid conditioning applications with special characteristics
